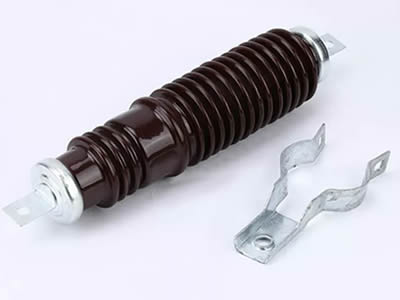

PORCELAIN ARRESTER SERIES
Porcelain Arrester Series
- Arrestr Type：3-36KV with 5KA or 10KA

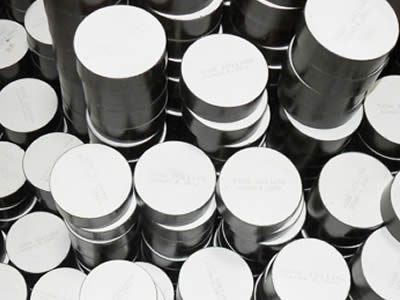

- Product Capacity: 200 thousand PCS MOV per year
- Manufacturer: Nanyang Invech Group
- Highlights
- Strict quality management system to control;
- According to IEC60099-4 international Standard.
-
INQUIRY
Normal operating conditions for Lightning Arrester：
1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .
2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)
3. AC system frequency is 50Hz or 60Hz.
4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.
5. Maximum wind speed does not exceed 35m/s.
6. Te earthquake intensity does not exceed 7 degrees.
7. The pollution area should be indicated.

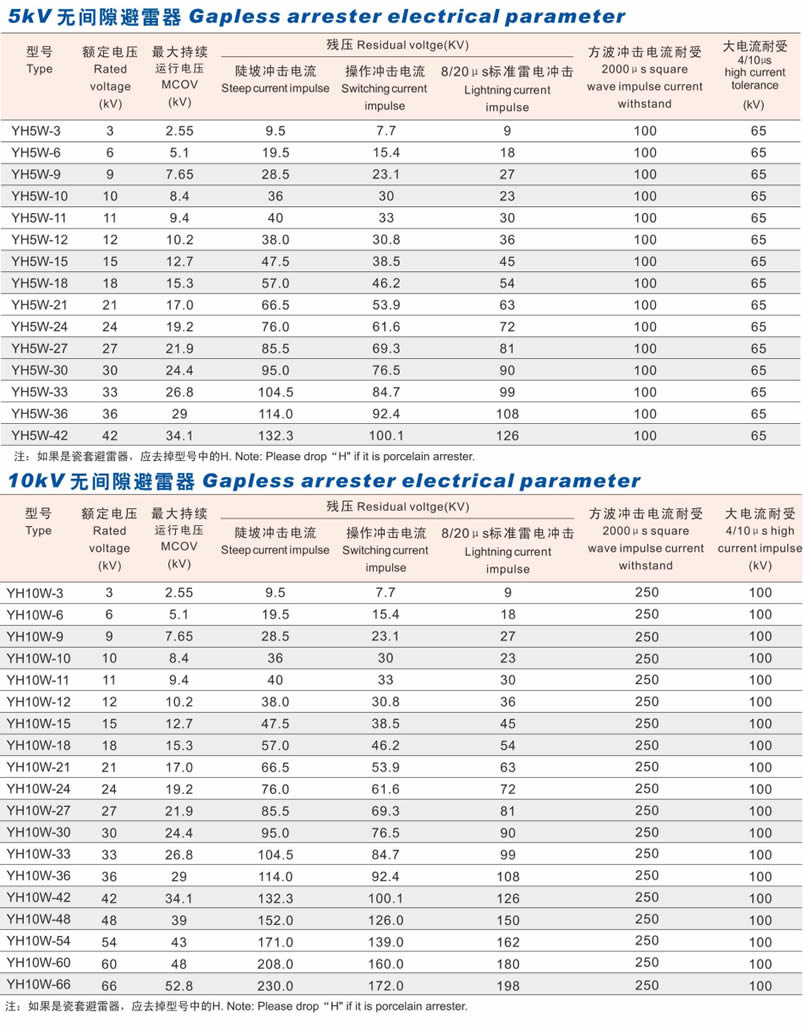

Technical Parameters
3-36KV Porcelain Series Surge Arresters- 12KV/10KA Porcelain Lighting Arresters
